Latitude 33°43'00"S  Longitude  150°52'00"W



ACQUISITION

Airfield on loan form R.A.A.F.



COMMISSIONED

18 February 1945  as NABTHORPE
15 November 1945 as NABSTOCK


PAID OFF

15 November 1945 (NABTHORPE)
09 June 1946 (NABSTOCK)


COMMANDING OFFICER

 Commander (A) E.W. Kenton 15 Feb 1945
 Captain H.V.P. McClintock D.S.O. 15 Nov 1945




FUNCTION

The support of disembarked Squadrons.
The provision of a Crew Pool & Refresher Flying School (706 Naval Air Squadron)


ADDRESS

R.N. Air Station

Nowra,

New South Wales,

Australia



LOCALITY

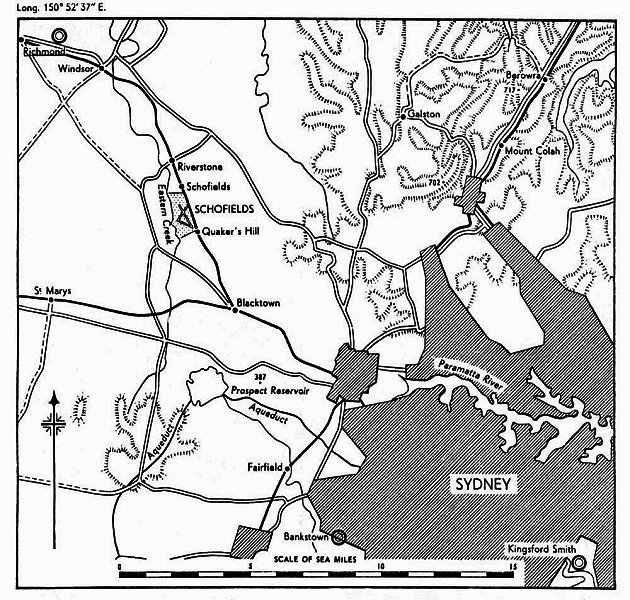

 The airfield lies one mile S. of the town of Schofields, 19 mile. WNW of Sydney Bridge and 15 miles NNW of Bankstown (MONAB II)


LANDMARKS

Railway line to Sydney forms airfield's NE boundary. Eastern Creek, a tributary of the Hawkesbury River is W boundary.


ROAD AND RAIL ACCESS

 Sealed road to Quaker's Hill one half mile where there is a railway station on the Richmond line to Sydney.







CONTROL

Control Building



ELEVATION

50' above M.S.L.



RUNWAYS

Three, unsealed gravel pavement: -


04/24 QDM. 037° 217° .... 1335 x 50yds.
11/29 QDM. 108° 288° .... 1500 x 50 yds.

15/33 QDM. 148° 328° .... 1665 x 50 yds.



TRACKS

50' perimeter tracks except runway ends 04 and 11.



OBSTRUCTIONS

Navigation

None.

Circuit



Approach

Trees surround, but approach fans have been cleared.



APPROACH

No special approach recommended.



WIND INDICATOR





HOMING - VISUAL

By day:

By night:



Supplied by MONAB



HOMING--RADIO

D/F:

Beacon:



Supplied by MONAB



APPROACH - VISUAL

By day:

By night:

Not known
Not known



APPROACH - RADIO

Not known



COMMUNICATION EQUIPMENT

W/T and R/T:

VH/F:



Supplied by MONAB

GROUND RADAR

Not known





ACCOMMODATION

At the time of transfer to Admiralty the station was still under construction with permanent accommodation for only 200. Tented accommodation provided for MOAB and squadron personnel.



approximate capacity:

MONAB

 Squadron

Officers:

50

140

Chiefs, P.O.s and ratings:

470

810



ARMOURIES





COMPASS BASE

One, concrete 70' diameter.



DISPERSAL

Four aprons outside of perimeter track, and one larger apron in centre of airfield.



HANGARS

 SE of landing area.

On arrival at Schofields MONAB 3 erected portable canvas hangers on the dispersal aprons while airfield construction continued.



Number /Type

Size

Door Height

Door Width

4 x Bellman

 187' 6" x 105'

25' 105'
4 x Dorland canvas ? ? ?


MEDICAL





METEOROLOGICAL





FUEL AND OIL

Aviation:

Not known.

M/T:

Not known.

Oil :

Not known.



TEST BASE





TEST BUTT





WORKSHOPS





VISITORS





EXPLOSIVES





BOMBING AND FIRING RANGES



Air to air



Air to ground and R. p. Firing



Live and practice bombing



Practice bombing



Assault training





Information taken from CB 4368 B. Admiralty Handbook of Naval Air Stations Aug. 45



List of first and second line squadrons, station flight and other flying units based at this location



702





706





723





724





801





812





814





820





837





880





885





887





894





899





1770





1772





1790





1831





1834





1836





1840





1843





1845





1850





1851















PAGE UNDER CONSTRUCTION





Click here for a list of Primary sources


Additional sources:



Admiralty Fleet Orders:



Confidential Admiralty Fleet Orders:

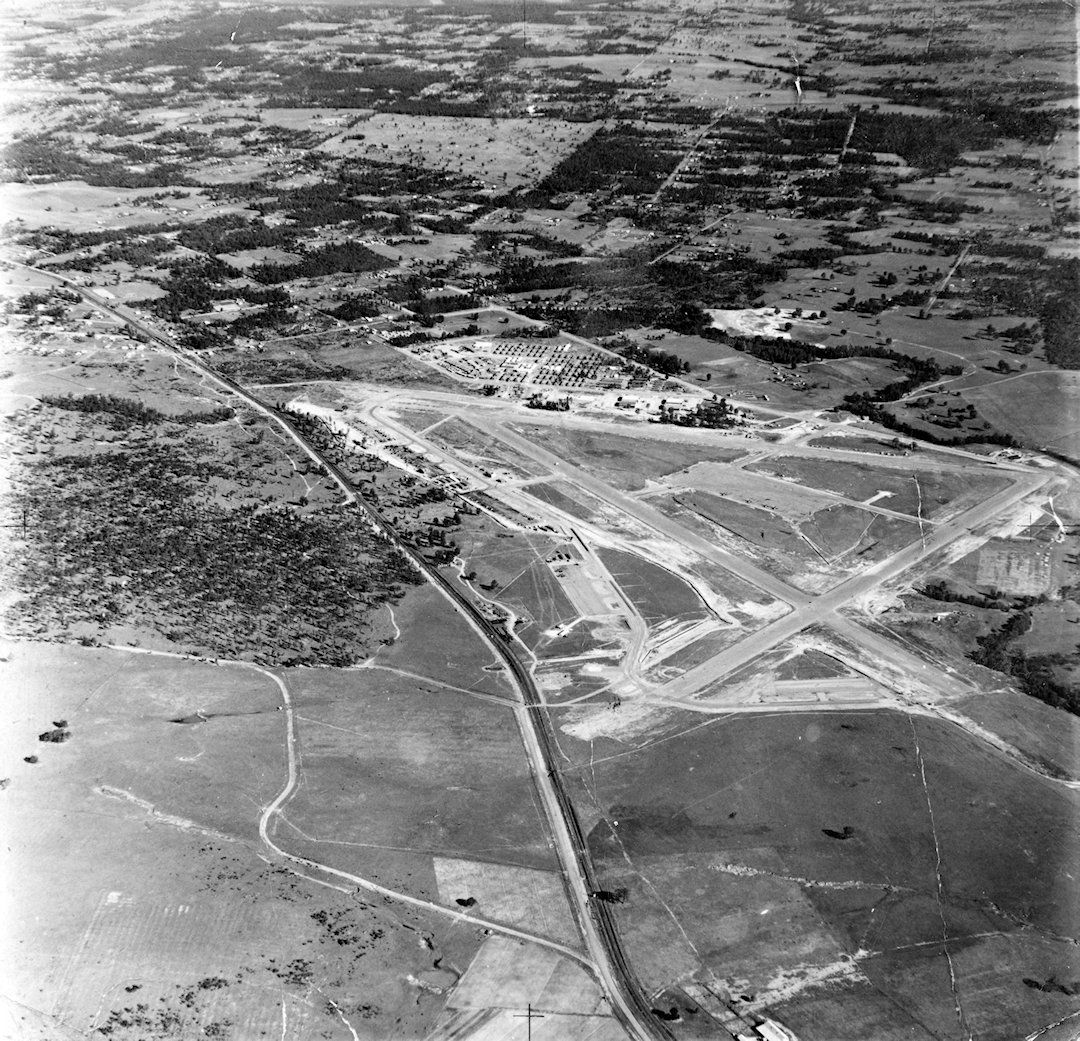

Oblique shot of Schofields.

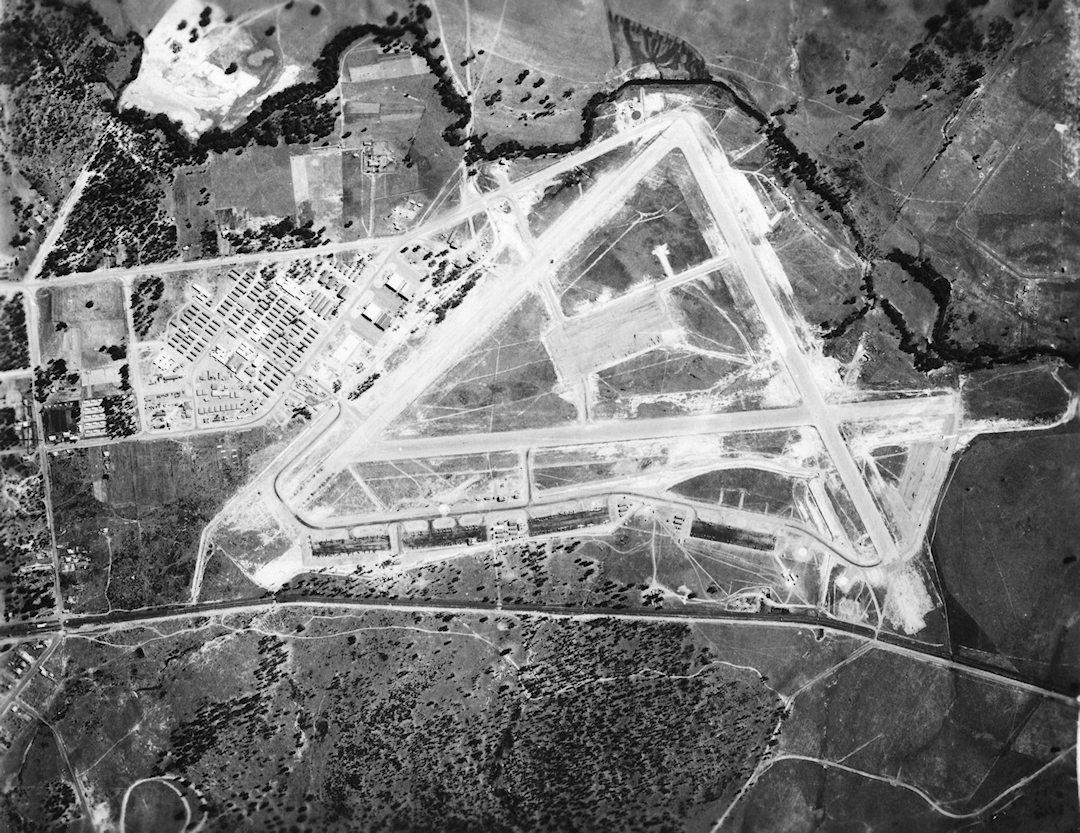

Overhead shot of Schofields

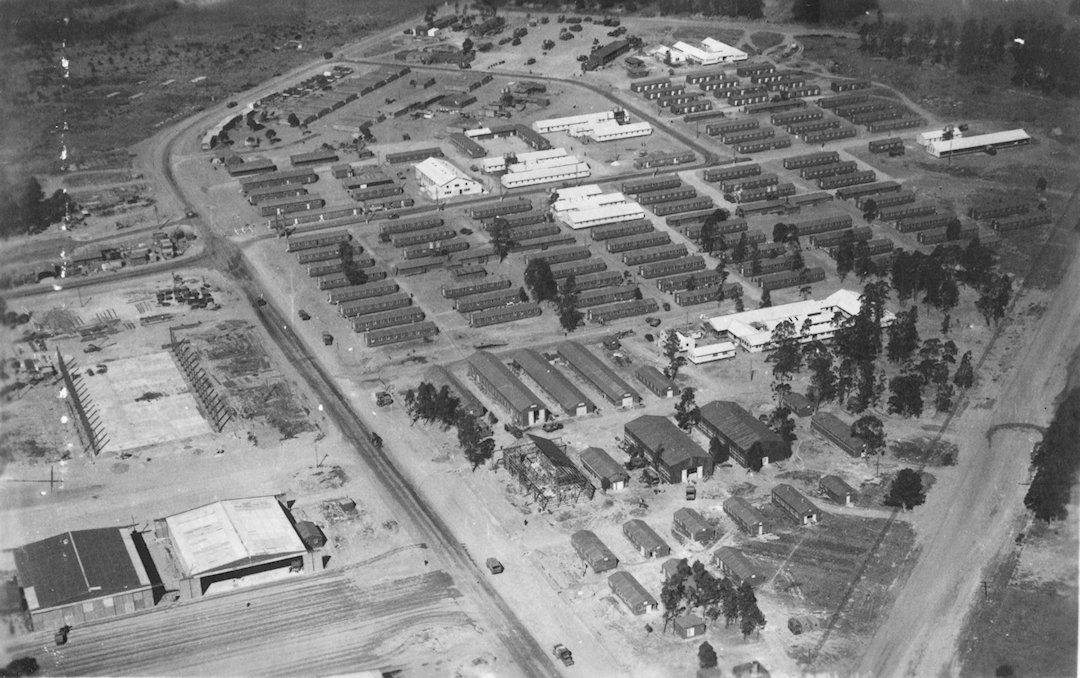

This shot shows the ongoing construction work, only 2 Bellman hangars are complete, the base and rids of a third can be seen.
